24DTC CAMERA
170° PoE Door Viewer Camera — Hero view
Hero01 / 04
PoE CameraModel HCP-DMY4

170° PoE Door Viewer Camera

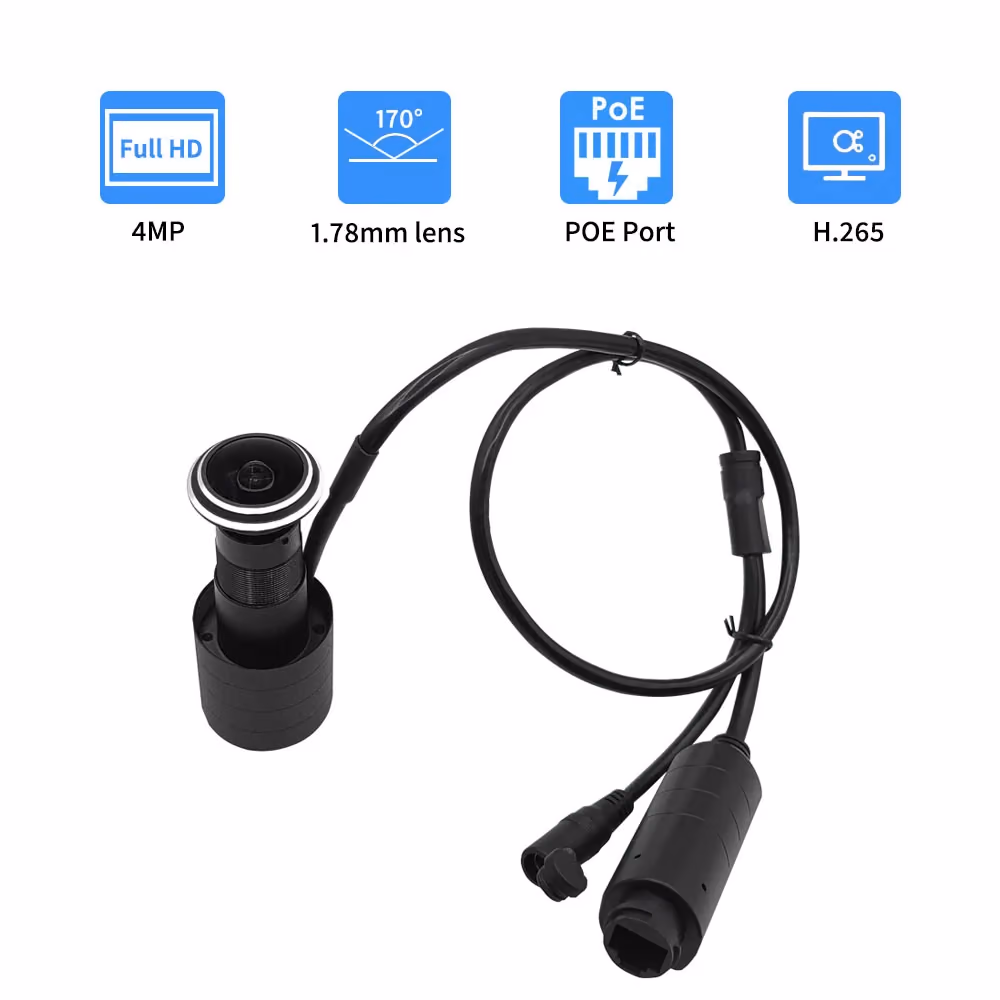

A 4MP fisheye door-view camera with an adjustable mounting depth and broad 170-degree coverage.

Feature 01

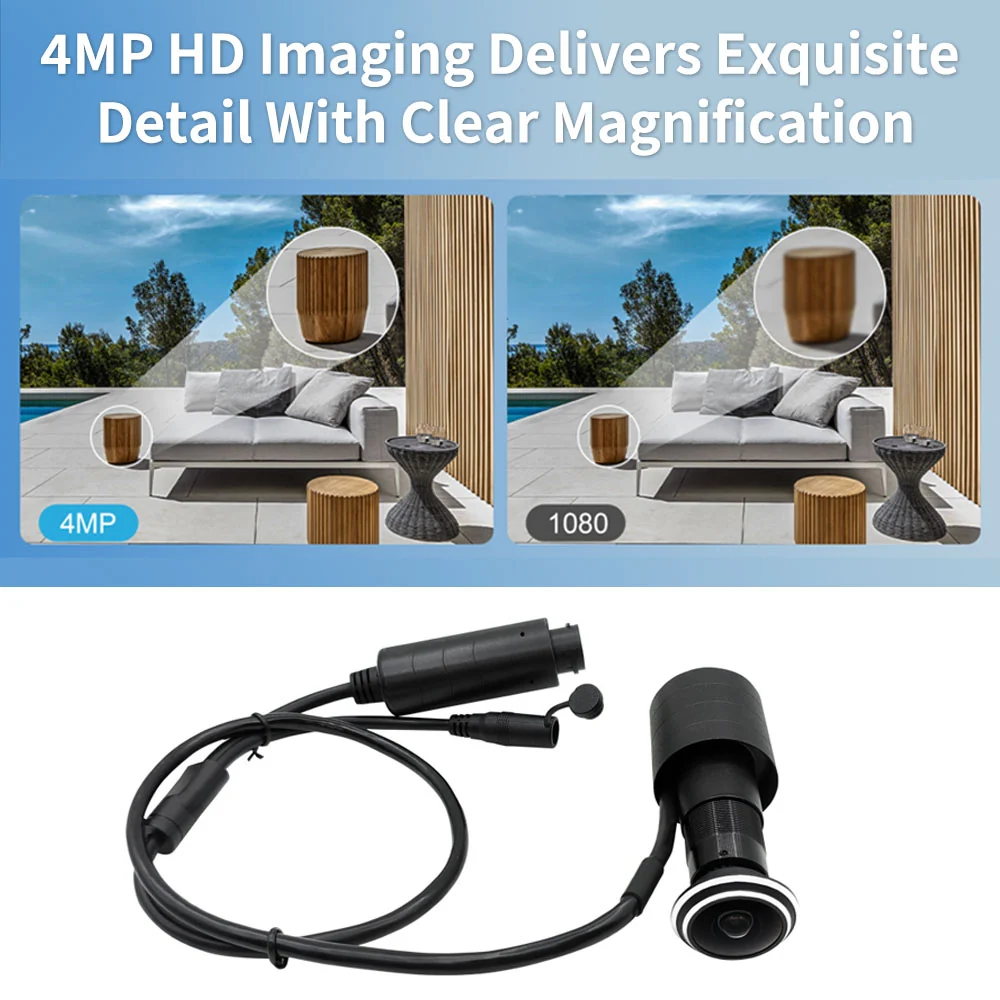

4MP Imaging

Feature 02

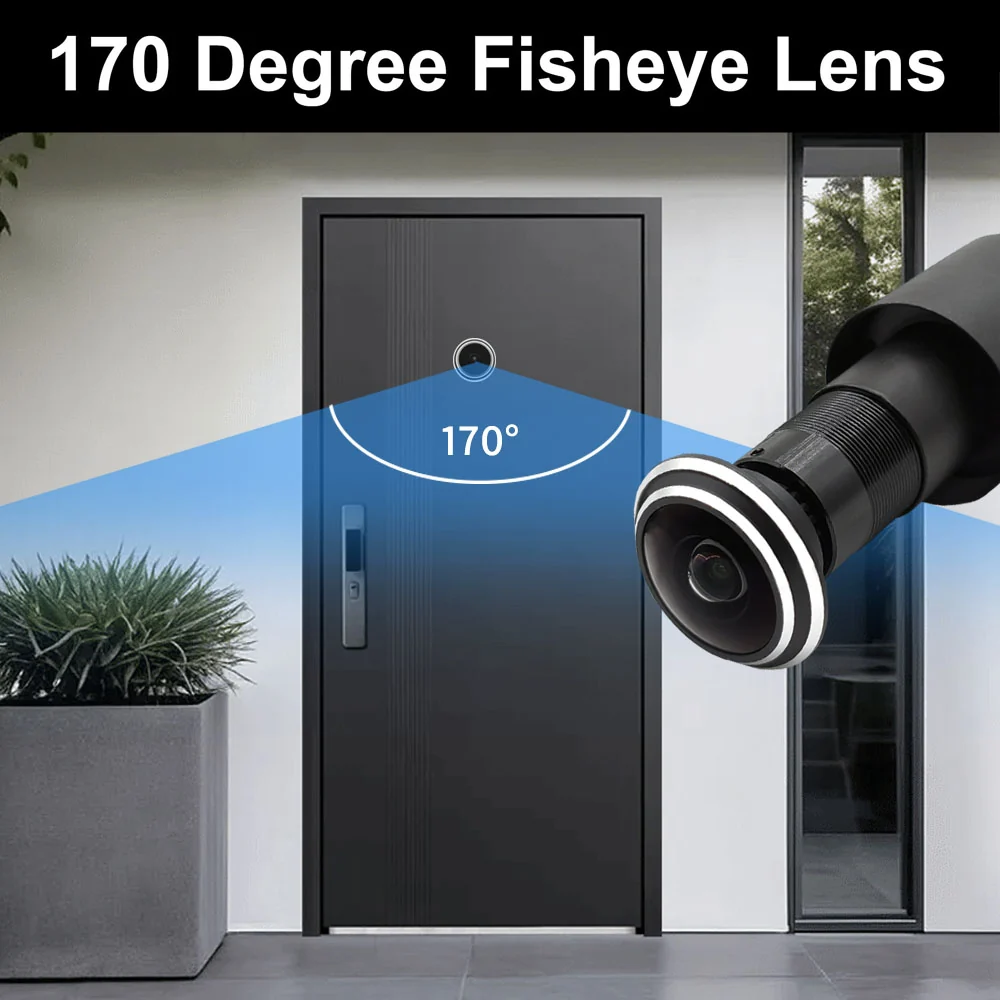

170° Fisheye View

Feature 03

Adjustable Door Fit

Request a quoteView specifications

Engineering samples and OEM customization available

Technical data

Specifications

Core performance and integration details for product evaluation.

01

Imaging & performance

Sensor
1/2.8-inch CMOS
Resolution
2560 x 1440 @ 25 FPS
Video compression
H.265
Lens
1.78 mm
Field of view
170 degrees
02

Interface & mechanical

Protocols
ONVIF / P2P
Power
48V PoE

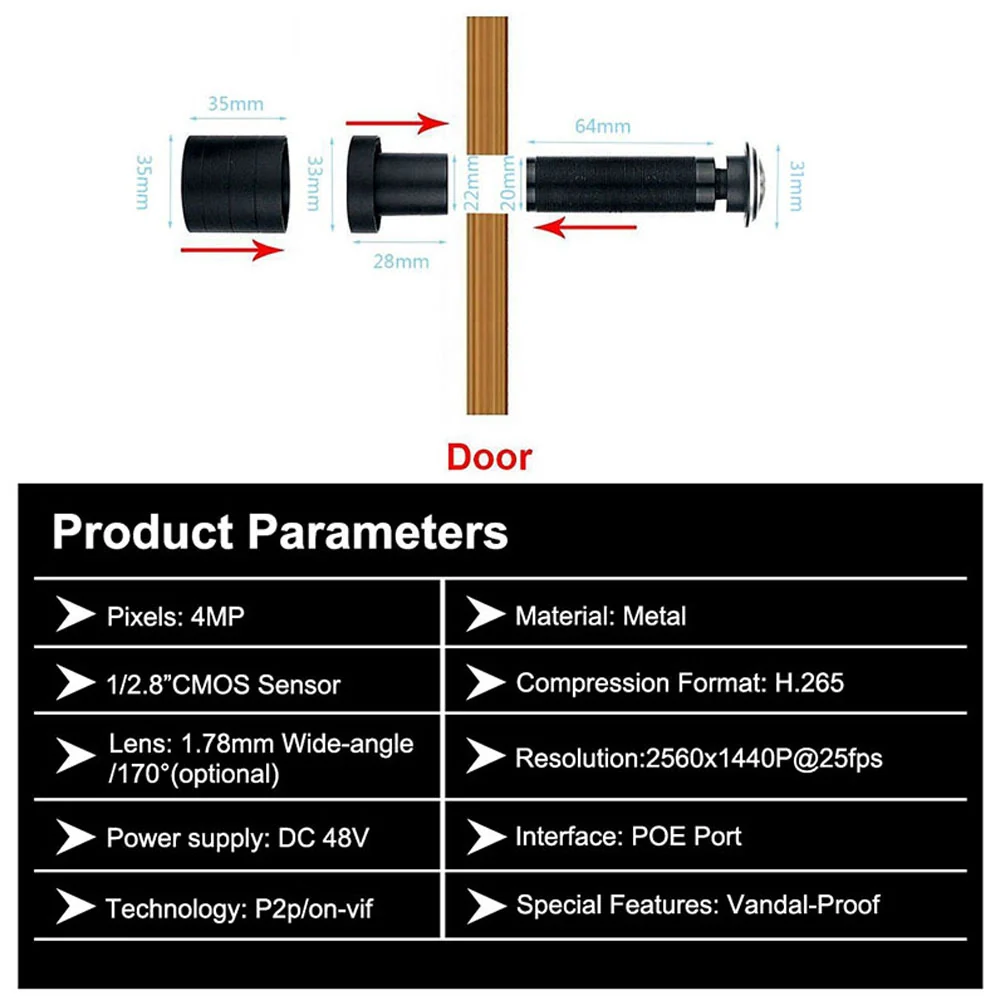

Mounting depth
35-90 mm adjustable
Housing
Metal

Built to integrate

Applications

Designed for reliable imaging across demanding connected products and intelligent systems.

Apartment entryways

Compact optics and stable output for dependable system integration.

Hotel doors

Compact optics and stable output for dependable system integration.

Access control systems

Compact optics and stable output for dependable system integration.

Technical resources

Datasheet & downloads

Product documentation for HCP-DMY4.

HCP-DMY4 product datasheet

PDF · Technical specification · Revision controlled

Request datasheet
