Perimeter monitoring
Compact optics and stable output for dependable system integration.
Hero01 / 04
PoE CameraModel HCP-BT302YS9
Infrared Mini PoE Bullet Camera
A slim 2MP PoE bullet camera with infrared illumination and an IP65-rated metal housing for day-and-night monitoring.
Feature 01
940nm / 850nm IR
Feature 02
IP65 Housing
Feature 03
2MP Full HD
Engineering samples and OEM customization available

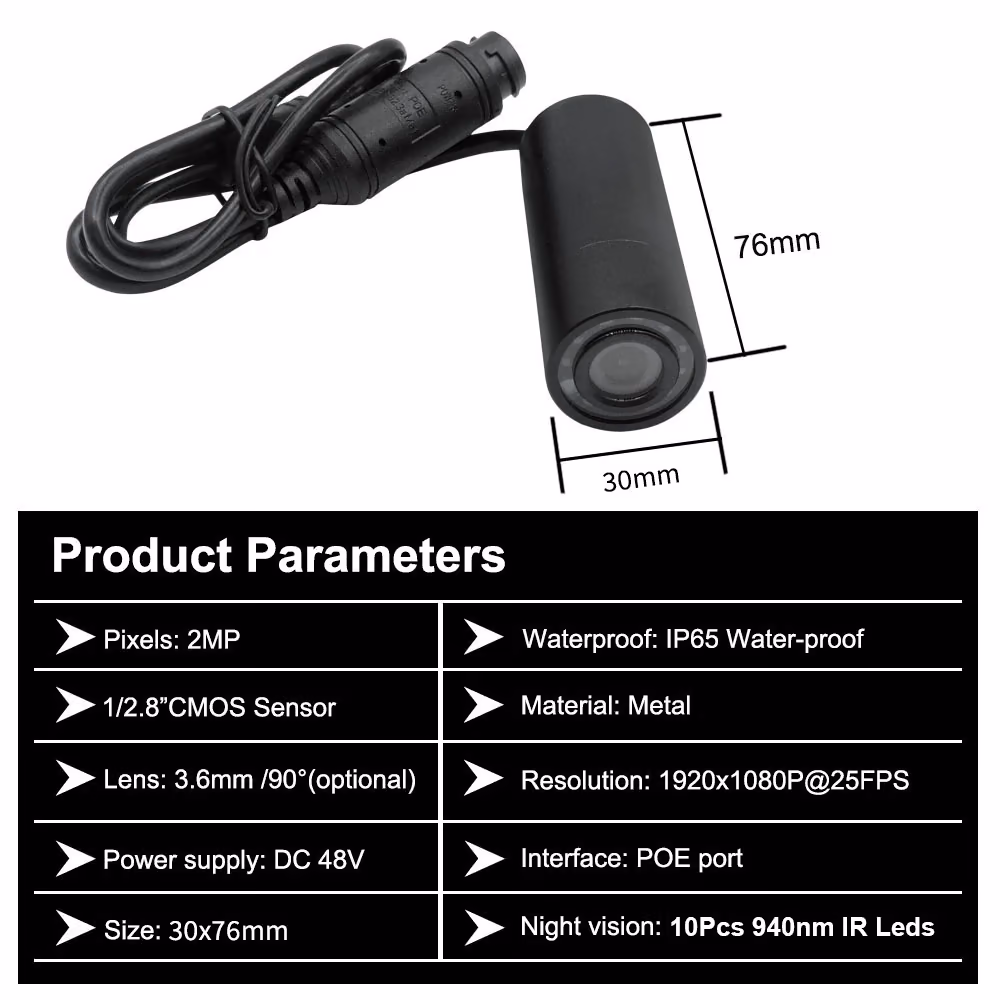

Technical data
Specifications
Core performance and integration details for product evaluation.
01
Imaging & performance
- 01Sensor
- 1/2.8-inch CMOS
- 02Resolution
- 1920 x 1080 @ 25 FPS
- 03Video compression
- H.265
- 04Lens
- 3.6 mm (optional)
- 05Field of view
- 90 degrees
02
Interface & mechanical
- 01Night vision
- 10 x 940nm or 850nm IR LEDs
- 02Ingress protection
- IP65
- 03Power
- 48V PoE
- 04Dimensions
- 30 x 77 mm
- 05Housing
- Metal
Built to integrate
Applications
Designed for reliable imaging across demanding connected products and intelligent systems.
Warehouses
Compact optics and stable output for dependable system integration.
Night-time security
Compact optics and stable output for dependable system integration.
Technical resources
Datasheet & downloads
Product documentation for HCP-BT302YS9.
HCP-BT302YS9 product datasheet
PDF · Technical specification · Revision controlled
