Outdoor monitoring
Compact optics and stable output for dependable system integration.
Hero01 / 04

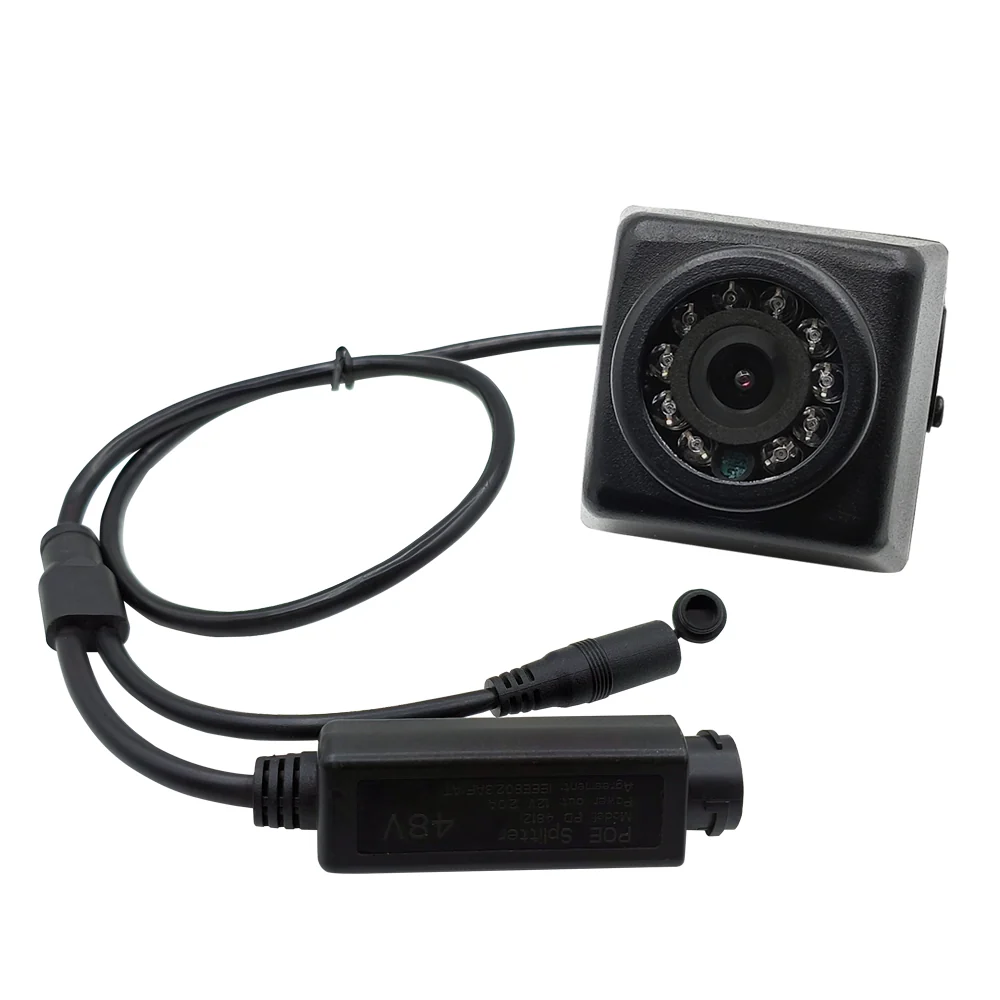

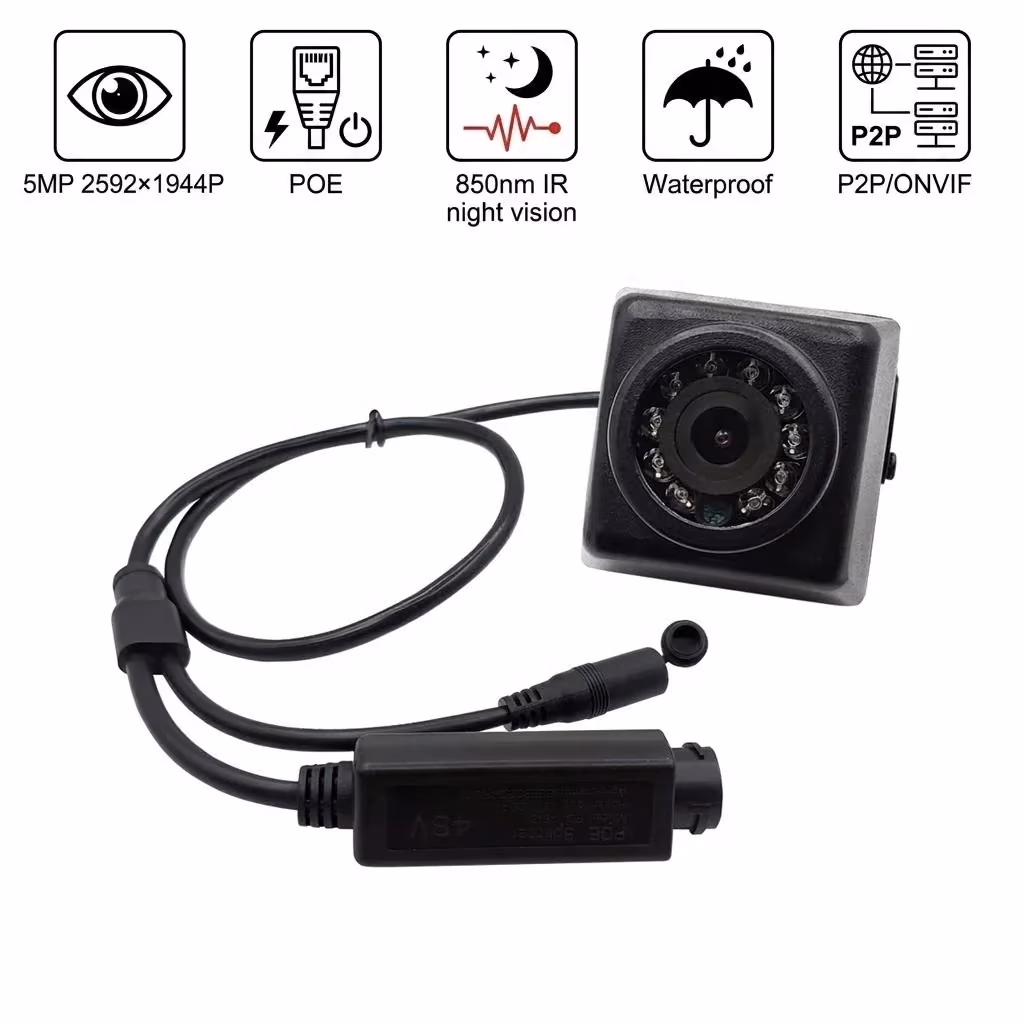

PoE CameraModel HCP-485YS9
5MP Infrared PoE Network Camera
A high-detail 5MP PoE camera with 850nm infrared night vision and an IP66-rated compact metal enclosure.
Feature 01
5MP Imaging
Feature 02
850nm IR Night Vision
Feature 03
IP66 Housing
Engineering samples and OEM customization available

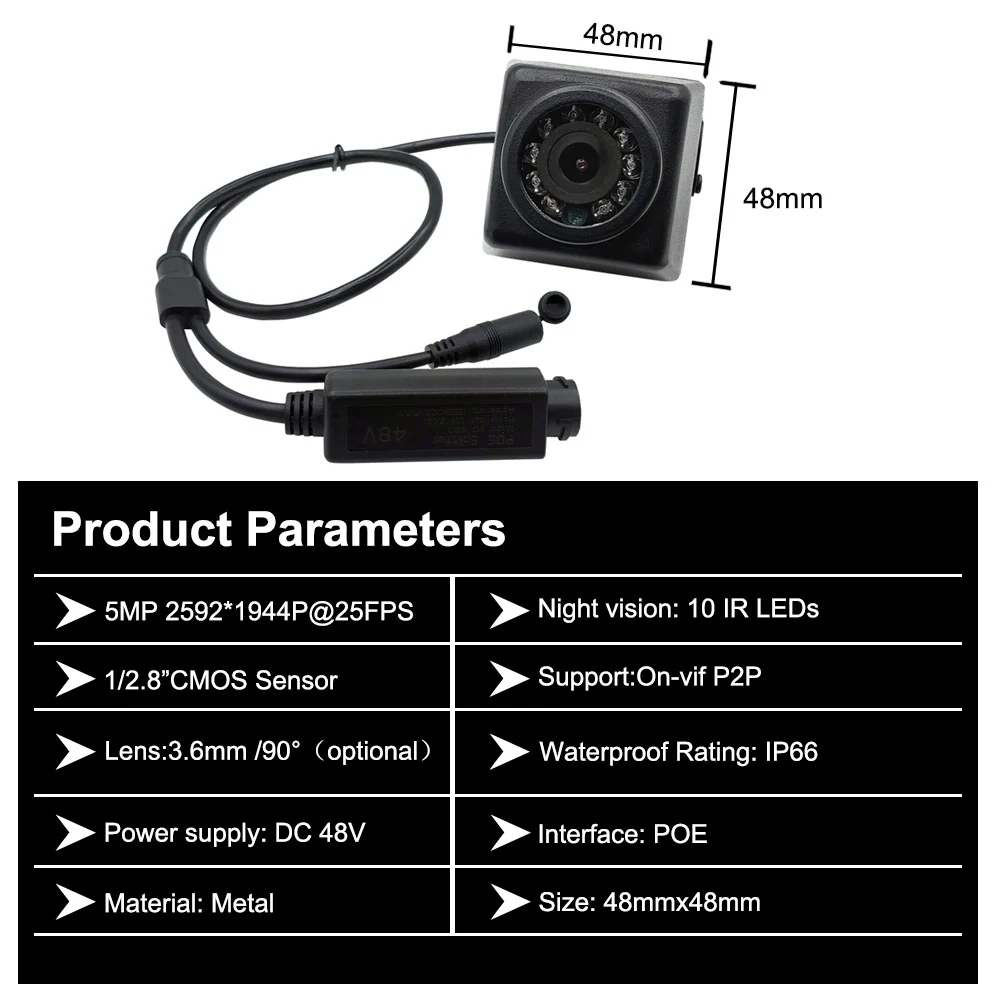

Technical data
Specifications
Core performance and integration details for product evaluation.
01
Imaging & performance
- 01Sensor
- 1/2.8-inch CMOS
- 02Resolution
- 2592 x 1944 @ 25 FPS
- 03Video compression
- H.265
- 04Lens
- 3.6 mm (optional)
- 05Field of view
- 90 degrees
- 06Night vision
- 10 x 850nm IR LEDs
02
Interface & mechanical
- 01Protocols
- ONVIF / P2P
- 02Ingress protection
- IP66
- 03Power
- 48V PoE
- 04Dimensions
- 48 x 48 mm
- 05Housing
- Metal
Built to integrate
Applications
Designed for reliable imaging across demanding connected products and intelligent systems.
Industrial facilities
Compact optics and stable output for dependable system integration.
High-detail security
Compact optics and stable output for dependable system integration.
Technical resources
Datasheet & downloads
Product documentation for HCP-485YS9.
HCP-485YS9 product datasheet
PDF · Technical specification · Revision controlled
