PoE CameraModel HCP-404J28W

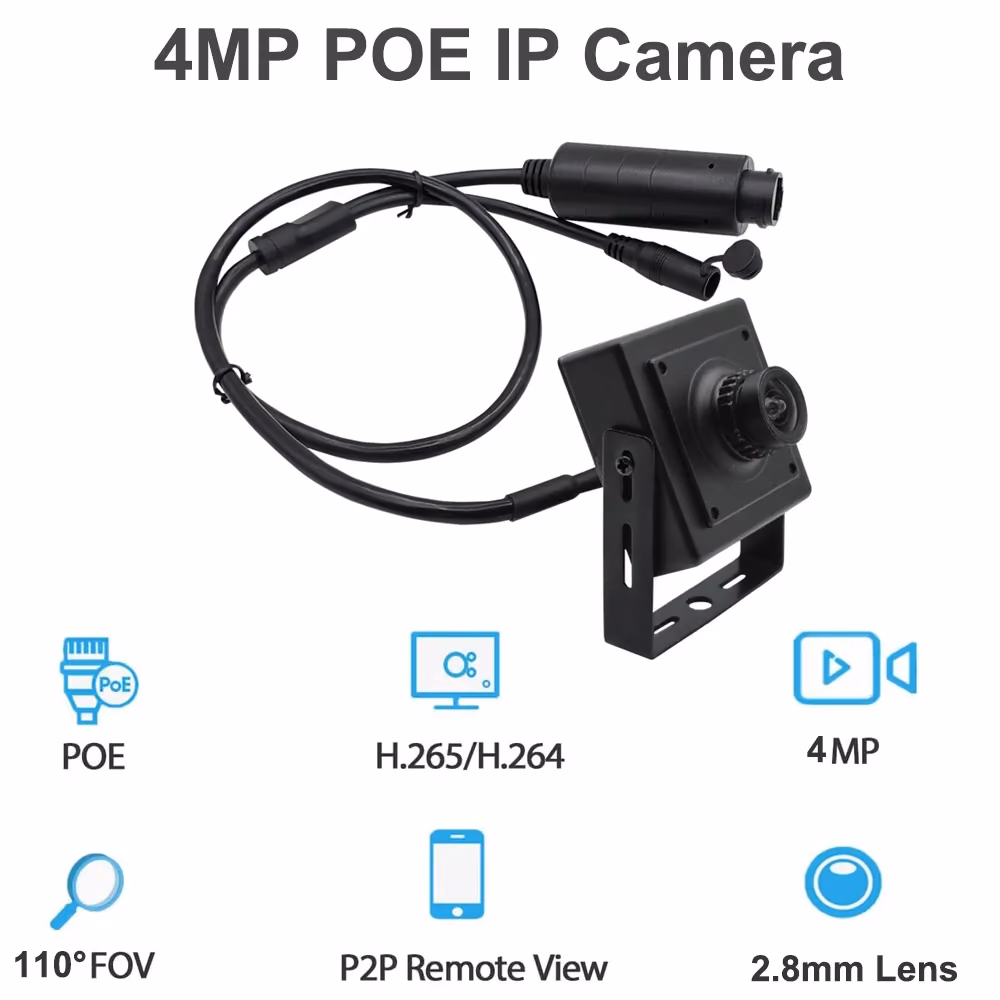

4MP Wide-Angle PoE Box Camera
A compact 4MP box camera with 110-degree coverage and standards-based network integration for embedded security systems.
Feature 01
4MP Imaging
Feature 02
110° Wide Angle
Feature 03
40 mm Metal Housing
Engineering samples and OEM customization available

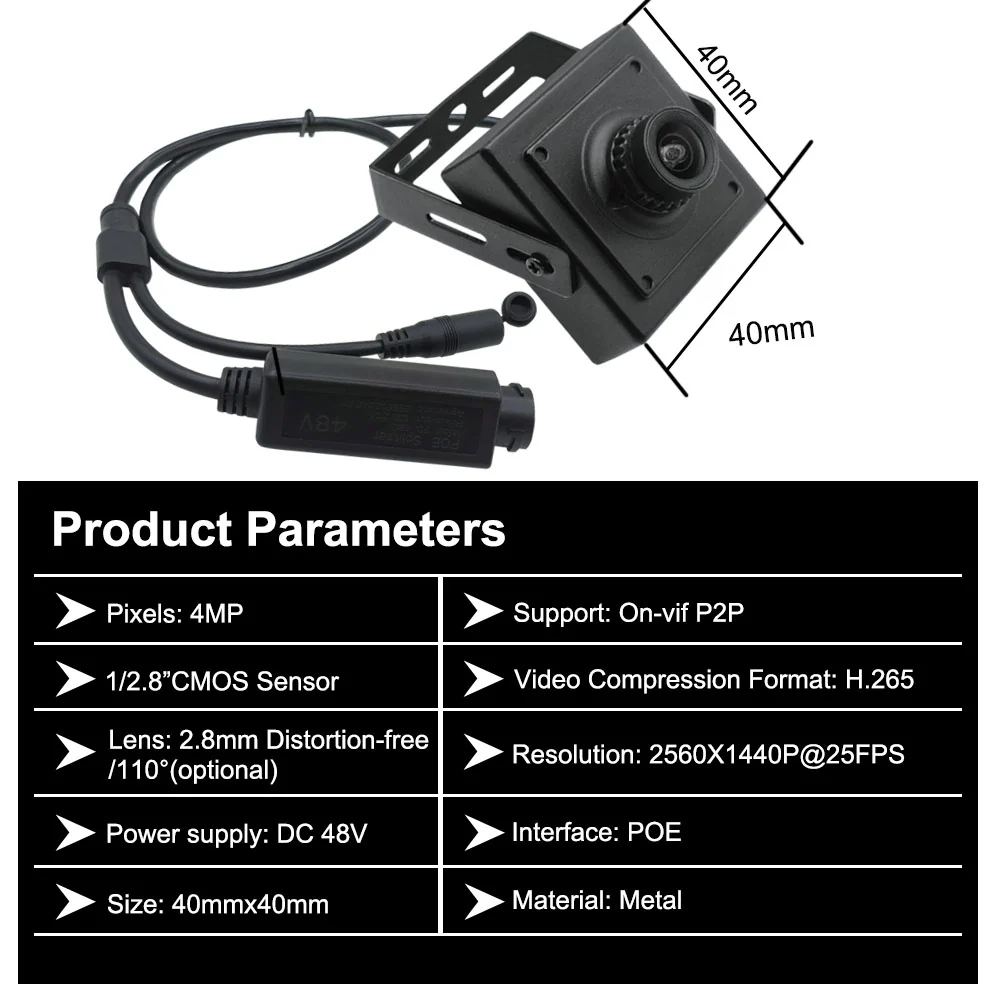

Technical data
Specifications
Core performance and integration details for product evaluation.
01
Imaging & performance
- 01Sensor
- 1/2.8-inch CMOS
- 02Resolution
- 2560 x 1440 @ 25 FPS
- 03Video compression
- H.265
- 04Lens
- 2.8 mm
- 05Field of view
- 110 degrees
02
Interface & mechanical
- 01Protocols
- ONVIF / P2P
- 02Interface
- PoE
- 03Power
- 48V PoE
- 04Dimensions
- 40 x 40 mm
- 05Housing
- Metal
Built to integrate
Applications
Designed for reliable imaging across demanding connected products and intelligent systems.
Embedded security
Compact optics and stable output for dependable system integration.
Industrial monitoring
Compact optics and stable output for dependable system integration.
Technical resources
Datasheet & downloads
Product documentation for HCP-404J28W.
HCP-404J28W product datasheet
PDF · Technical specification · Revision controlled
